CO Removal Catalyst Ceramic Honeycomb Catalytic Converter

CAS-KR-Y01-F CO removal catalyst ceramic honeycomb catalytic converter was made by using cordierite honeycomb ceramics as support, special coating material and high content of precious metals Pd and Pt as active component, it can be used to efficiently remove the carbon monoxide generated by the insufficient combustion of all kinds of combustible gas ,such as CO from petro gas, inert gas, oxygen and etc, also could be used in various furnace like oven, chimney place, incinerator to treat not burst CO.

This catalytic converter could make CO content less than 0.5ppm, under temperature 150~200°C and space velocity at (0.3~1.0)×10⁴ h^-1,the content of carbon monoxide in the purified gas can be reduced to less than 0.5 PPM and the oxygen absorption capacity of the catalyst is up to 50ml/g, which can catalyze the reaction of carbon monoxide and oxygen into carbon dioxide, and the catalyst can be reused.

before using, the CAS - KR - Y01 - F type carbon monoxide removal catalyst need to be mixed with fresh air or nitrogen, heated up to 180~200 celsius to active its performance, and then add the gas to be treated, the optimal operating temperature: 250--300celsius,under the reaction conditions of 1.5~3.0×103h-1, the CO concentration in the gas could be eliminated to less than 0.5 PPM, The highest heat resistance temperature is 750℃(cooling system is required if flammable gas is in high concentration to prevent catalyst sintering), Mechanical strength is good, the service life can reach more than 3 years.

The harmful exhaust CO and unburned hydrocarbons CnHm is easily generated in the barbecue process by the oven equipment, After the installation of the oven tail gas purification catalyst, under the action of a catalyst, in the rising process of exhaust gas temperature in the oven, catalytic oxidation of the oven tail gas occurs further at low temperature, which can produce emissions of CO2 and H2O,so that CO and CnHm can reach the discharge standard, and purify the exhaust gas of the oven .CAS-KR-K01-F oven exhaust gas purification is in the conditions of catalyst at a temperature of 250~400 °C, airspeed (0.3~1) × 10⁴h⁻¹ , the purified gas, CO and non-methane hydrocarbons content can be reduced to below 4mg/m3; the catalyst can be reused repeatedly, the mechanical strength is good and the service life can more than 2 years.

before using, the oven exhaust catalyst need to be heated up to200~250 celsius to active its performance, and then add the oven gas to be treated, the optimal operating temperature: more than 300celsius,under the reaction conditions of 1.5~3.0×103h-1, the CO concentration in the gas could be eliminated to less than 0.5 PPM, and the non-methane hydrocarbons concentration can be reduced to less than 1ppm; the highest heat resistance temperature is 750℃(cooling system is required if flammable gas is in high concentration to prevent catalyst sintering

Mosquitoes find people by the carbon dioxide people give off, when they sense the carbon dioxide gas stream they will fly to the gas flow immediately, the mosquito magnet is a machine that traps mosquitoes by using liquefied petroleum gas run and simulate human respiration to produce the carbon dioxide to a certain concentration,; Among which the core component of simulating human respiration to produce carbon dioxide to a certain concentration and eliminating carbon monoxide is the Cas-KR-Y01M-F magnetic special mosquito killer catalyst

the CAS-KR-Y01M-F type mosquito killer magnetic catalyst belongs to high-tech functional material products,It has the function of catalytic oxidation to convert the liquefied petroleum gas into simulating human CO2 to attract mosquitoes into the mosquito trap, at the same time, the waste heat from catalytic oxidation can be used to generate electricity for mosquito traps, the product is non-toxic and harmless, belongs to environmentally friendly products, it is mainly used in deluxe mosquito killer.can also be used in oven, fireplace and industrial CO and VOC gas catalytic oxidation.

High temperature resistant pad of inorganic material is used during installation, if not used for a long time, it should be removed and sealed moisture-proof, the catalyst failure caused by dampness can be reused by 110℃ drying or 500℃ roasting.

Before using, CO removal catalyst should be heated up to 180~200°C by fresh ai or nitrogen , in order to active its performance.The optimal operating temperature is 200°C, and removal CO until 0.5ppm left under operation space velocity (0.3~1.0)×10⁴ h^-1; Max temperature is 750°C (cooling system is required if flammable gas is in high concentration).

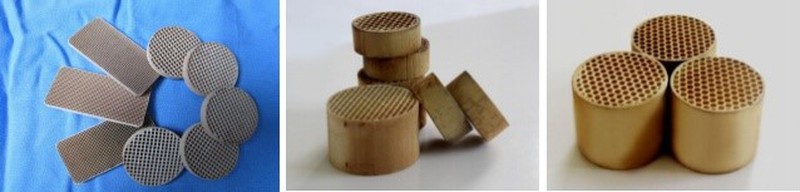

CAS-KR-Y01K-F type carbon monoxide removal oven catalyst product pictures

The harmful exhaust CO and unburned hydrocarbons CnHm easily generated in the barbecue process oven equipment.After install the exhaust gas purification catalyst oven, under the action of a catalyst, in the process of exhaust gas temperature rising in the oven, oven exhaust further temperature catalytic oxidation, can produce emissions of CO2 and H2O , so that CO and CnHm can reach the discharge standard,and the oven exhaust purification as the purposes. CAS-KR-K01-F oven exhaust gas purification is in the conditions of catalyst at a temperature of 250~400 °C, airspeed (0.3~1) × 10⁴h⁻¹ , the purified gas, CO and non-methane hydrocarbons content can be reduced to below 4mg/m3; the catalyst can be repeatedly recycled, the mechanical strength is good so that the service life can more than 2 years.

Oven exhaust catalyst need preheat to 200~250 °C activation first, and then run the oven gas to be treated, the better the operation temperature over 300 °C, the reaction conditions of 1.5~3.0 * 103h-1 CO in exhaust can be eliminated to below 0.5ppm, non-methane hydrocarbons can be reduced to below 1 ppm; the highest heat-resisting temperature is 750 °C (if the combustible gas concentration is high,it need to be matched with cooling system, prevent catalyst sintering).

 CAS-KR-Y01M-F mosquito magnet Catalyst product pictures

Mosquitoes are issued by the body of carbon dioxide atmosphere to find people, when they feel the carbon dioxide gas flows immediately they will flew to the air stream; mosquito magnet is a machine that using the liquified petroleum gas to run produce the simulation of human respiratory carbon dioxide concentration and catch the mosquito ; which produce simulated human respiratory carbon dioxide concentration and the elimination of carbon monoxide as core components is CAS-KR-Y01M-F type catalyst for mosquito magnet.

CAS-KR-Y01M-F mosquito magnet catalyst belongs to high-tech material products, with the liquefied petroleum gas catalytic oxidation to simulate human CO2 function to attract mosquitoes mosquito catcher, at the same time, heat and oxidation generated waste heat can be used to produce electricity for the mosquito catcher used. the product non-toxic harmless, environment friendly products, mainly used for luxury type mosquito killing machine, can also be used in oven, fireplace and industrial CO and VOC gas catalytic oxidation.

The installation to use inorganic material of high temperature resistant pad, do not need to disassemble the moisture-proof seal after long-term , catalyst wetting caused failures by 110 °C drying or calcined at 500 °C regeneration.

CAS-KR-Y01-1 carbon monoxide normal temperature removal catalyst without activation, without preheating, at normal temperature in air purifier used directly.Placed in front of 1:1 catalyst volume when using active carbon or alumina molecular sieve catalyst for moisture.The vacancy please seal packaging, when opened, if damp with constant temperature of 120 °C drying after using 3h.
